ERT-A2120 High-Frequency Radar Level Transmitter
ERT-A2120 high-frequency radar level transmitter for non-contact liquid level measurement and control
Integrated design for high-precision level monitoring
±2 mm accuracy for precise measurement
60 GHz high-frequency radar technology for fast and reliable response
Suitable for wastewater, rivers, reservoirs, and tank level applications
Ideal for demanding industrial and municipal environments
Application
Wastewater Treatment & Sewage Systems
River, Reservoir & Hydrology Monitoring
Municipal Water Supply & Drainage Projects
Flood Warning & Rainfall Monitoring Systems
Industrial Tanks & Process Automation
Description

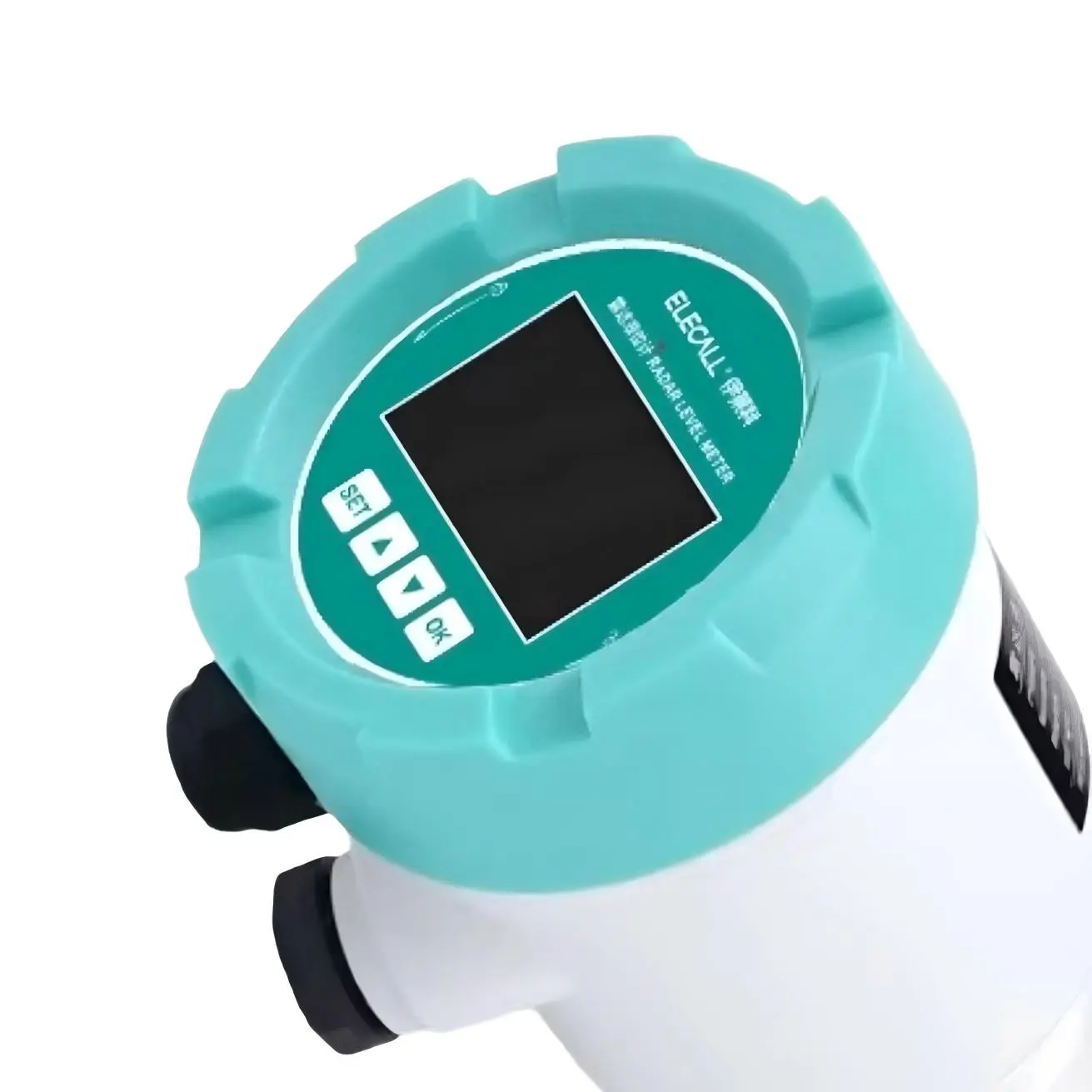

The ERT-A2120 One-Piece 60GHz Radar Level Transmitter is designed for stable and accurate non-contact liquid level measurement in industrial applications. Based on 60GHz FMCW radar technology, it provides high measurement precision with a narrow 9° beam angle, effectively reducing false echoes caused by tank structures, liquid turbulence, and environmental interference. The compact integrated design combines level display, control, and alarm functions, making it an efficient solution for automated liquid level management.
The transmitter supports optional relay outputs for high and low-level alarm control, enabling direct connection with pumps, valves, and other control equipment. Two antenna versions are available: the Lens Antenna Version for liquids with impurities, foam, or turbulence, and the Basic Antenna Version for clean, non-corrosive liquids without impurities.
With IP65 protection, durable materials, and flexible power supply options, the ERT-A2120 ensures long-term stable operation with low maintenance requirements, making it suitable for water treatment, industrial tanks, and various liquid level monitoring applications.
Features
Technical Details
Measuring Principle
Measuring Variable
Measuring Range
Blind Zone
Accuracy
Resolution
Transmitter Output
Alarm Output
Communication Output
Operating Voltage
Process Connection
Operating Temperature
Operating Humidity
Protection Rating
Antenna Beam Angle
Transmitting Frequency
Accessories
